资源配置

主机	IP
mongodb节点	10.0.10.79

软件	版本
docker	Server Version: 24.0.5
docker-compose	Docker Compose version v2.17.0
mongo镜像	TAG:4.2

`MongoDB` `副本集群` 安装

生成 `keyFile`

MongoDB使用keyfile认证，副本集中的每个mongod实例使用keyfile内容作为认证其他成员的共享密码。mongod实例只有拥有正确的keyfile才可以加入副本集。
keyFile的内容必须是6到1024个字符的长度，且副本集所有成员的keyFile内容必须相同。
有一点要注意是的：在UNIX系统中，keyFile必须没有组权限或完全权限（也就是权限要设置成X00的形式）。Windows系统中，keyFile权限没有被检查。
可以使用任意方法生成keyFile。例如，如下操作使用openssl生成复杂的随机的1024个字符串。然后使用chmod修改文件权限，只给文件拥有者提供读权限。这是MongoDB官方推荐keyFile的生成方式

# 400权限是要保证安全性，否则mongod启动会报错
# 直接复制命令生成是生成在当前文件下
openssl rand -base64 756 > mongodb.key
chmod 400 mongodb.key

docker-compose文件

yml文件中 - MONGO_INITDB_ROOT_PASSWORD=password 请修改为自己的密码。

version: "3"

services:
  #主节点
  mongodb1:
    image: mongo:4.2
    container_name: mongo1
    restart: always
    ports:
      - 27017:27017
    environment:
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=password
    command: mongod --replSet rs0 --keyFile /mongodb.key
    volumes:
      - /etc/localtime:/etc/localtime
      - /data/mongodb/mongo1/data:/data/db
      - /data/mongodb/mongo1/configdb:/data/configdb
      - /data/mongodb/mongo1/mongodb.key:/mongodb.key
    networks:
      - mongoNet
    entrypoint:
      - bash
      - -c
      - |
        chmod 400 /mongodb.key
        chown 999:999 /mongodb.key
        exec docker-entrypoint.sh $$@
  # 副节点
  mongodb2:
    image: mongo:4.2
    container_name: mongo2
    restart: always
    ports:
      - 27018:27017
    environment:
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=password
    command: mongod --replSet rs0 --keyFile /mongodb.key
    volumes:
      - /etc/localtime:/etc/localtime
      - /data/mongodb/mongo2/data:/data/db
      - /data/mongodb/mongo2/configdb:/data/configdb
      - /data/mongodb/mongo2/mongodb.key:/mongodb.key
    networks:
      - mongoNet
    entrypoint:
      - bash
      - -c
      - |
        chmod 400 /mongodb.key
        chown 999:999 /mongodb.key
        exec docker-entrypoint.sh $$@
  # 副节点
  mongodb3:
    image: mongo:4.2
    container_name: mongo3
    restart: always
    ports:
      - 27019:27017
    environment:
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=password
    command: mongod --replSet rs0 --keyFile /mongodb.key
    volumes:
      - /etc/localtime:/etc/localtime
      - /data/mongodb/mongo3/data:/data/db
      - /data/mongodb/mongo3/configdb:/data/configdb
      - /data/mongodb/mongo3/mongodb.key:/mongodb.key
    networks:
      - mongoNet
    entrypoint:
      - bash
      - -c
      - |
        chmod 400 /mongodb.key
        chown 999:999 /mongodb.key
        exec docker-entrypoint.sh $$@
networks:
  mongoNet:
    driver: bridge

`MongoDB` `副本集群` 部署

# mkdir /data/mongodb/mongo{1,2,3}/{data,configdb} -pv

## 提供redis.conf配置
# cp mongodb.key /data/mongodb/mongo1/
# cp mongodb.key /data/mongodb/mongo2/
# cp mongodb.key /data/mongodb/mongo3/

# docker-compose up -d

配置集群

进入 Mongo 容器链接 Mongo

# 选择第一个容器mongo1，进入mongo 容器
docker exec -it mongo1 bash

# 登录mongo 请修改正确的密码
mongo -u root -p password

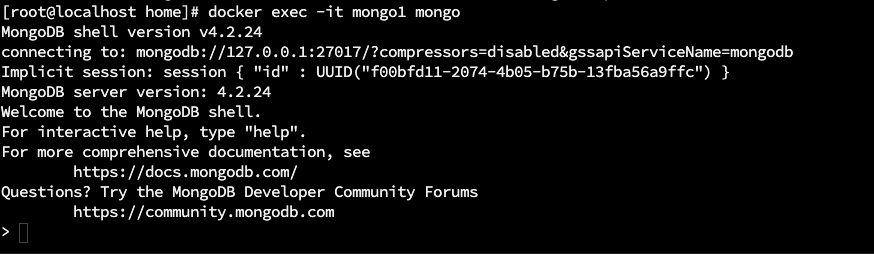

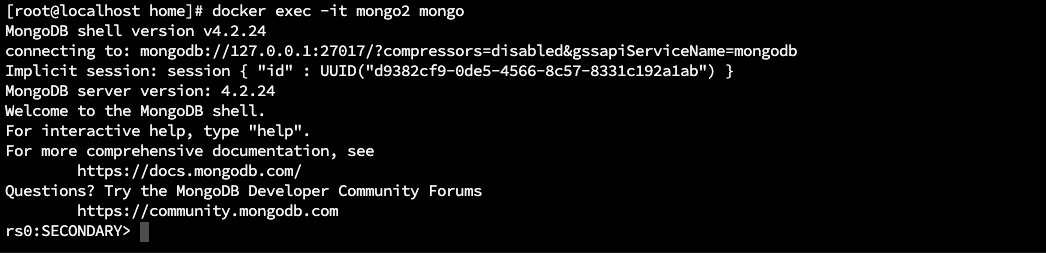

或者通过以下方式进入 Mongo 容器链接 Mongo

#
docker exec -it mongo1 mongo

通过以下指令配置 mongo 副本集集群

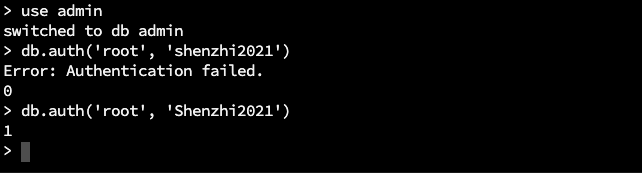

# 认证
 use admin
 db.auth('root', 'password')

成功返回1，失败返回0

使用配置文件初始化集群

单主机模式部署 副本集 添加节点必须使用宿主机IP+PORT，
使用容器内部IP的情况下代码层面连接到 mongodb-cluster 集群，
获取到的集群地址信息为 docker 容器内部 IP，
若业务代码没有部署在 mongodb 主机则无法访问

配置文件请查看docker compose 里面 --replSet rs0 字段

command: mongod --replSet rs0 --keyFile /mongodb.key

请仔细检查 rs0 是否一样

cfg = {
  _id: "rs0",
  members: [
    { _id: 0, host: "10.0.10.79:27017" },
    { _id: 1, host: "10.0.10.79:27018" },
    { _id: 2, host: "10.0.10.79:27019" }
  ]
};

初始化集群

rs.initiate(cfg)

增长 `mongo1` 和 `mongo2` 的权重

cfg = rs.conf()

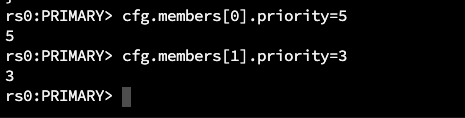

# 修改权重
cfg.members[0].priority=5

cfg.members[1].priority=3

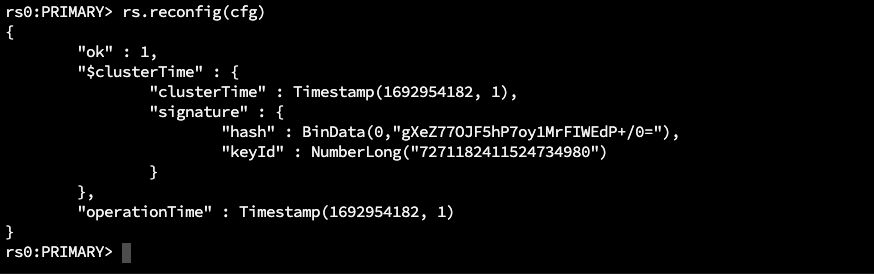

# 从新配置
rs.reconfig(cfg)

验证副本集

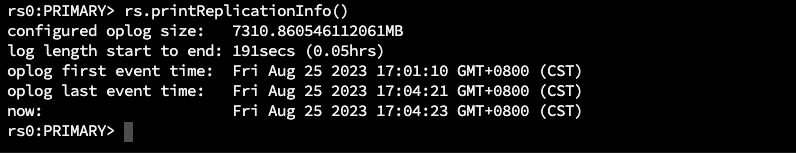

# 切换节点查看同步状态：

rs.printReplicationInfo()

# 仅当建立了集合后副节点才会进行同步

单节点初始化副本集

单主机模式部署 3副本集 添加节点必须使用宿主机IP+PORT，
使用容器内部IP的情况下代码层面连接到 mongodb-cluster 集群，
获取到的集群地址信息为 docker 容器内部 IP，
若业务代码没有部署在 mongodb 主机则无法访问

初始化副本集

mongodb-cluster 集群

rs.initiate()
# 输入mongo命令后在输入以下命令



## 无参初始化后，当前节点默认是PRIMARY节点，
## 并且节点信息为容器主机名+PORT，后续需要删除节点后重新添加到集群中

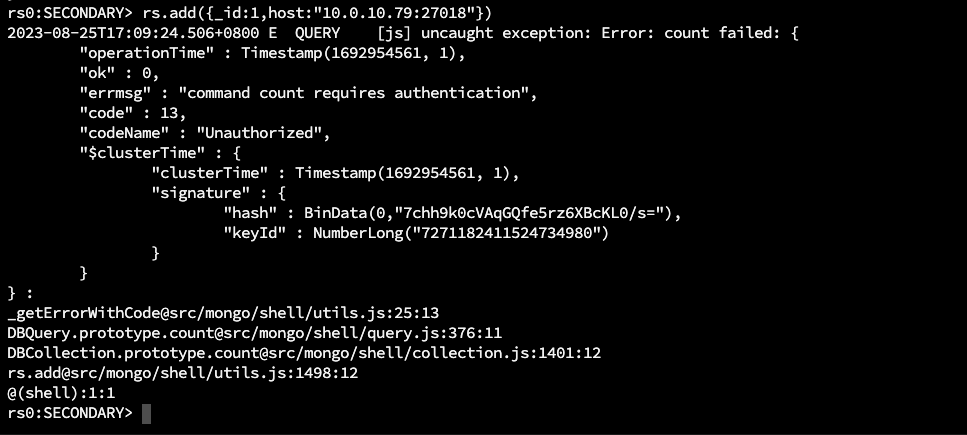

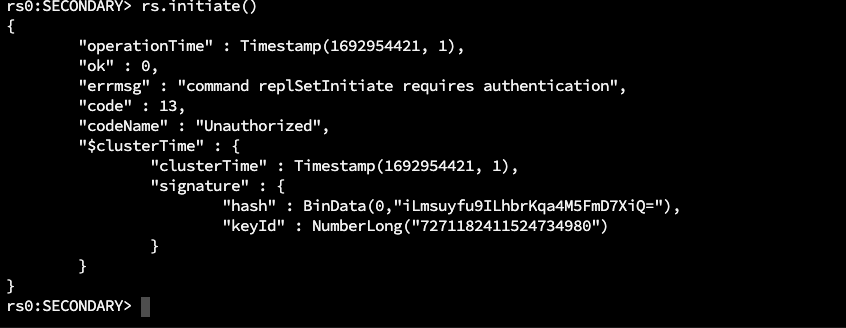

下图是报错的信息需要输入认证账号密码

通过以下指令配置 `mongo` 副本集集群

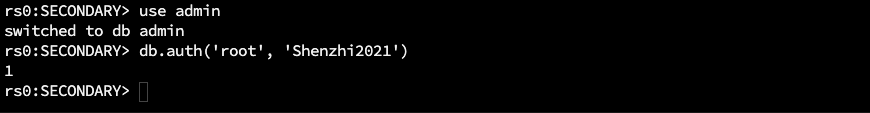

# 认证
use admin
db.auth('root', 'password')

查看副本集配置信息和运行状态

要先完成以上 用户 密码 认证后方可输入查看副本集配置信息 rs.conf() 查看副本集运行状态：rs.status()
完成认证相当于授权了一次，如果退出在操作需要登录操作，否则会报错

root@fd2dfd58ebe7:/# mongo -u root -p Shenzhi2021

报错信息

rs0:SECONDARY> rs.conf()
2023-08-25T17:39:40.577+0800 E  QUERY    [js] uncaught exception: Error: Could not retrieve replica set config: {
        "operationTime" : Timestamp(1692956371, 1),
        "ok" : 0,
        "errmsg" : "command replSetGetConfig requires authentication",
        "code" : 13,
        "codeName" : "Unauthorized",
        "$clusterTime" : {
                "clusterTime" : Timestamp(1692956371, 1),
                "signature" : {
                        "hash" : BinData(0,"R/DbsYbmJg0Epf4MLkdOap7ZD40="),
                        "keyId" : NumberLong("7271182411524734980")
                }
        }
} :
rs.conf@src/mongo/shell/utils.js:1547:11
@(shell):1:1

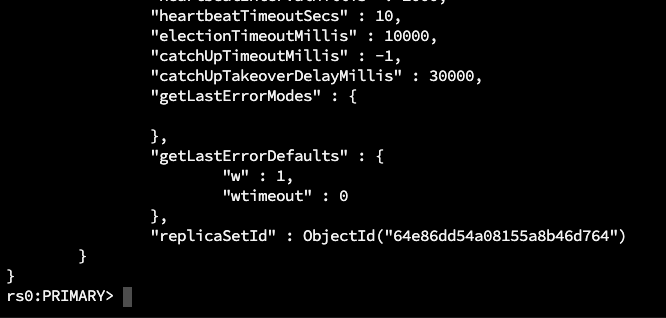

登陆后下图信息是正确的


# 查看副本集配置信息
rs.conf()


rs0:SECONDARY> rs.conf()
{
        "_id" : "rs0",
        "version" : 2,
        "protocolVersion" : NumberLong(1),
        "writeConcernMajorityJournalDefault" : true,
        "members" : [
                {
                        "_id" : 0,
                        "host" : "10.0.10.79:27017",
                        "arbiterOnly" : false,
                        "buildIndexes" : true,
                        "hidden" : false,
                        "priority" : 5,
                        "tags" : {

                        },
                        "slaveDelay" : NumberLong(0),
                        "votes" : 1
                },
                {
                        "_id" : 1,
                        "host" : "10.0.10.79:27018",
                        "arbiterOnly" : false,
                        "buildIndexes" : true,
                        "hidden" : false,
                        "priority" : 3,
                        "tags" : {

                        },
                        "slaveDelay" : NumberLong(0),
                        "votes" : 1
                },
                {
                        "_id" : 2,
                        "host" : "10.0.10.79:27019",
                        "arbiterOnly" : false,
                        "buildIndexes" : true,
                        "hidden" : false,
                        "priority" : 1,
                        "tags" : {

                        },
                        "slaveDelay" : NumberLong(0),
                        "votes" : 1
                }
        ],
        "settings" : {
                "chainingAllowed" : true,
                "heartbeatIntervalMillis" : 2000,
                "heartbeatTimeoutSecs" : 10,
                "electionTimeoutMillis" : 10000,
                "catchUpTimeoutMillis" : -1,
                "catchUpTakeoverDelayMillis" : 30000,
                "getLastErrorModes" : {

                },
                "getLastErrorDefaults" : {
                        "w" : 1,
                        "wtimeout" : 0
                },
                "replicaSetId" : ObjectId("64e86dd54a08155a8b46d764")
        }
}


# 查看副本集运行状态：
rs.status()


rs0:SECONDARY> rs.status()
{
        "set" : "rs0",
        "date" : ISODate("2023-08-25T09:33:47.370Z"),
        "myState" : 2,
        "term" : NumberLong(1),
        "syncingTo" : "10.0.10.79:27017",
        "syncSourceHost" : "10.0.10.79:27017",
        "syncSourceId" : 0,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "majorityVoteCount" : 2,
        "writeMajorityCount" : 2,
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1692956021, 1),
                        "t" : NumberLong(1)
                },
                "lastCommittedWallTime" : ISODate("2023-08-25T09:33:41.153Z"),
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1692956021, 1),
                        "t" : NumberLong(1)
                },
                "readConcernMajorityWallTime" : ISODate("2023-08-25T09:33:41.153Z"),
                "appliedOpTime" : {
                        "ts" : Timestamp(1692956021, 1),
                        "t" : NumberLong(1)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1692956021, 1),
                        "t" : NumberLong(1)
                },
                "lastAppliedWallTime" : ISODate("2023-08-25T09:33:41.153Z"),
                "lastDurableWallTime" : ISODate("2023-08-25T09:33:41.153Z")
        },
        "lastStableRecoveryTimestamp" : Timestamp(1692956001, 1),
        "lastStableCheckpointTimestamp" : Timestamp(1692956001, 1),
        "electionParticipantMetrics" : {
                "votedForCandidate" : true,
                "electionTerm" : NumberLong(1),
                "lastVoteDate" : ISODate("2023-08-25T09:01:21.060Z"),
                "electionCandidateMemberId" : 0,
                "voteReason" : "",
                "lastAppliedOpTimeAtElection" : {
                        "ts" : Timestamp(1692954070, 1),
                        "t" : NumberLong(-1)
                },
                "maxAppliedOpTimeInSet" : {
                        "ts" : Timestamp(1692954070, 1),
                        "t" : NumberLong(-1)
                },
                "priorityAtElection" : 1,
                "newTermStartDate" : ISODate("2023-08-25T09:01:21.085Z"),
                "newTermAppliedDate" : ISODate("2023-08-25T09:01:22.133Z")
        },
        "members" : [
                {
                        "_id" : 0,
                        "name" : "10.0.10.79:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",
                        "uptime" : 1956,
                        "optime" : {
                                "ts" : Timestamp(1692956021, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1692956021, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2023-08-25T09:33:41Z"),
                        "optimeDurableDate" : ISODate("2023-08-25T09:33:41Z"),
                        "lastHeartbeat" : ISODate("2023-08-25T09:33:45.926Z"),
                        "lastHeartbeatRecv" : ISODate("2023-08-25T09:33:47.014Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "electionTime" : Timestamp(1692954081, 1),
                        "electionDate" : ISODate("2023-08-25T09:01:21Z"),
                        "configVersion" : 2
                },
                {
                        "_id" : 1,
                        "name" : "10.0.10.79:27018",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",
                        "uptime" : 1956,
                        "optime" : {
                                "ts" : Timestamp(1692956021, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1692956021, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2023-08-25T09:33:41Z"),
                        "optimeDurableDate" : ISODate("2023-08-25T09:33:41Z"),
                        "lastHeartbeat" : ISODate("2023-08-25T09:33:45.927Z"),
                        "lastHeartbeatRecv" : ISODate("2023-08-25T09:33:45.925Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "10.0.10.79:27017",
                        "syncSourceHost" : "10.0.10.79:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 2
                },
                {
                        "_id" : 2,
                        "name" : "10.0.10.79:27019",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",
                        "uptime" : 8347,
                        "optime" : {
                                "ts" : Timestamp(1692956021, 1),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2023-08-25T09:33:41Z"),
                        "syncingTo" : "10.0.10.79:27017",
                        "syncSourceHost" : "10.0.10.79:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 2,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                }
        ],
        "ok" : 1,
        "$clusterTime" : {
                "clusterTime" : Timestamp(1692956021, 1),
                "signature" : {
                        "hash" : BinData(0,"XjmVjQ6FjBmHZ7H22qDfZrxr68s="),
                        "keyId" : NumberLong("7271182411524734980")
                }
        },
        "operationTime" : Timestamp(1692956021, 1)
}

添加节点

# 副节点1
rs.initiate()

# 无参初始化后，当前节点默认是PRIMARY节点，
# 并且节点信息为容器主机名+PORT，后续需要删除节点后重新添加到集群中
rs.add({_id:1,host:"10.0.10.79:27018"})


# 副节点2
rs.initiate()

# 无参初始化后，当前节点默认是PRIMARY节点，
# 并且节点信息为容器主机名+PORT，后续需要删除节点后重新添加到集群中
rs.add({_id:2,host:"10.0.10.79:27019"})

# 请挨个操作一次

副节点1

副节点2

查看副本集配置信息和运行状态

## 查看副本集配置信息
> rs.conf()

## 查看副本集运行状态：
> rs.status()

rs0:SECONDARY> rs.status()
{
        "set" : "rs0",
        "date" : ISODate("2023-08-25T09:19:55.188Z"),
        "myState" : 2,
        "term" : NumberLong(1),
        "syncingTo" : "10.0.10.79:27017",
        "syncSourceHost" : "10.0.10.79:27017",
        "syncSourceId" : 0,
        "heartbeatIntervalMillis" : NumberLong(2000),
        "majorityVoteCount" : 2,
        "writeMajorityCount" : 2,
        "optimes" : {
                "lastCommittedOpTime" : {
                        "ts" : Timestamp(1692955181, 2),
                        "t" : NumberLong(1)
                },
                "lastCommittedWallTime" : ISODate("2023-08-25T09:19:41.569Z"),
                "readConcernMajorityOpTime" : {
                        "ts" : Timestamp(1692955181, 2),
                        "t" : NumberLong(1)
                },
                "readConcernMajorityWallTime" : ISODate("2023-08-25T09:19:41.569Z"),
                "appliedOpTime" : {
                        "ts" : Timestamp(1692955181, 2),
                        "t" : NumberLong(1)
                },
                "durableOpTime" : {
                        "ts" : Timestamp(1692955181, 2),
                        "t" : NumberLong(1)
                },
                "lastAppliedWallTime" : ISODate("2023-08-25T09:19:41.569Z"),
                "lastDurableWallTime" : ISODate("2023-08-25T09:19:41.569Z")
        },
        "lastStableRecoveryTimestamp" : Timestamp(1692955161, 1),
        "lastStableCheckpointTimestamp" : Timestamp(1692955161, 1),
        "electionParticipantMetrics" : {
                "votedForCandidate" : true,
                "electionTerm" : NumberLong(1),
                "lastVoteDate" : ISODate("2023-08-25T09:01:21.060Z"),
                "electionCandidateMemberId" : 0,
                "voteReason" : "",
                "lastAppliedOpTimeAtElection" : {
                        "ts" : Timestamp(1692954070, 1),
                        "t" : NumberLong(-1)
                },
                "maxAppliedOpTimeInSet" : {
                        "ts" : Timestamp(1692954070, 1),
                        "t" : NumberLong(-1)
                },
                "priorityAtElection" : 1,
                "newTermStartDate" : ISODate("2023-08-25T09:01:21.085Z"),
                "newTermAppliedDate" : ISODate("2023-08-25T09:01:22.179Z")
        },
        "members" : [
                {
                        "_id" : 0,
                        "name" : "10.0.10.79:27017",
                        "health" : 1,
                        "state" : 1,
                        "stateStr" : "PRIMARY",
                        "uptime" : 1124,
                        "optime" : {
                                "ts" : Timestamp(1692955181, 2),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1692955181, 2),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2023-08-25T09:19:41Z"),
                        "optimeDurableDate" : ISODate("2023-08-25T09:19:41Z"),
                        "lastHeartbeat" : ISODate("2023-08-25T09:19:53.830Z"),
                        "lastHeartbeatRecv" : ISODate("2023-08-25T09:19:54.870Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "",
                        "syncSourceHost" : "",
                        "syncSourceId" : -1,
                        "infoMessage" : "",
                        "electionTime" : Timestamp(1692954081, 1),
                        "electionDate" : ISODate("2023-08-25T09:01:21Z"),
                        "configVersion" : 2
                },
                {
                        "_id" : 1,
                        "name" : "10.0.10.79:27018",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",
                        "uptime" : 7515,
                        "optime" : {
                                "ts" : Timestamp(1692955181, 2),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2023-08-25T09:19:41Z"),
                        "syncingTo" : "10.0.10.79:27017",
                        "syncSourceHost" : "10.0.10.79:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 2,
                        "self" : true,
                        "lastHeartbeatMessage" : ""
                },
                {
                        "_id" : 2,
                        "name" : "10.0.10.79:27019",
                        "health" : 1,
                        "state" : 2,
                        "stateStr" : "SECONDARY",
                        "uptime" : 1124,
                        "optime" : {
                                "ts" : Timestamp(1692955181, 2),
                                "t" : NumberLong(1)
                        },
                        "optimeDurable" : {
                                "ts" : Timestamp(1692955181, 2),
                                "t" : NumberLong(1)
                        },
                        "optimeDate" : ISODate("2023-08-25T09:19:41Z"),
                        "optimeDurableDate" : ISODate("2023-08-25T09:19:41Z"),
                        "lastHeartbeat" : ISODate("2023-08-25T09:19:53.832Z"),
                        "lastHeartbeatRecv" : ISODate("2023-08-25T09:19:53.830Z"),
                        "pingMs" : NumberLong(0),
                        "lastHeartbeatMessage" : "",
                        "syncingTo" : "10.0.10.79:27017",
                        "syncSourceHost" : "10.0.10.79:27017",
                        "syncSourceId" : 0,
                        "infoMessage" : "",
                        "configVersion" : 2
                }
        ],
        "ok" : 1,
        "$clusterTime" : {
                "clusterTime" : Timestamp(1692955181, 2),
                "signature" : {
                        "hash" : BinData(0,"qVcoaptvN88UX/u3kKQ7e4x75r8="),
                        "keyId" : NumberLong("7271182411524734980")
                }
        },
        "operationTime" : Timestamp(1692955181, 2)
}

切换节点

暂停节点1

docker stop mongo1

找到集群新的主节点，添加节点1

# docker start mongo2 mongo

## 认证
use admin
db.auth('root', 'mongodb@evescn')
rs.remove("d266ffd0e331:27017")  ## rs.status() 查看集群节点1的信息

## 添加节点1
rs.add({_id:0,host:"10.0.0.1:27017"})

增长 `mongo1` 和 `mongo2` 的权重

cfg = rs.conf()

# 修改权重
cfg.members[0].priority=5


cfg.members[1].priority=3

# 从新配置
rs.reconfig(cfg)

验证副本集

# 切换节点查看同步状态：

rs.printReplicationInfo()

# 仅当建立了集合后副节点才会进行同步

资源配置

MongoDB 副本集群 安装

生成 keyFile

docker-compose文件

MongoDB 副本集群 部署

配置集群

使用配置文件初始化集群

初始化集群

增长 mongo1 和 mongo2 的权重

验证副本集

单节点初始化副本集

初始化副本集

通过以下指令配置 mongo 副本集集群

查看副本集配置信息和运行状态

添加节点

查看副本集配置信息和运行状态

切换节点

暂停节点1

找到集群新的主节点，添加节点1

增长 mongo1 和 mongo2 的权重

验证副本集

`MongoDB` `副本集群` 安装

生成 `keyFile`

`MongoDB` `副本集群` 部署

增长 `mongo1` 和 `mongo2` 的权重

通过以下指令配置 `mongo` 副本集集群

增长 `mongo1` 和 `mongo2` 的权重
